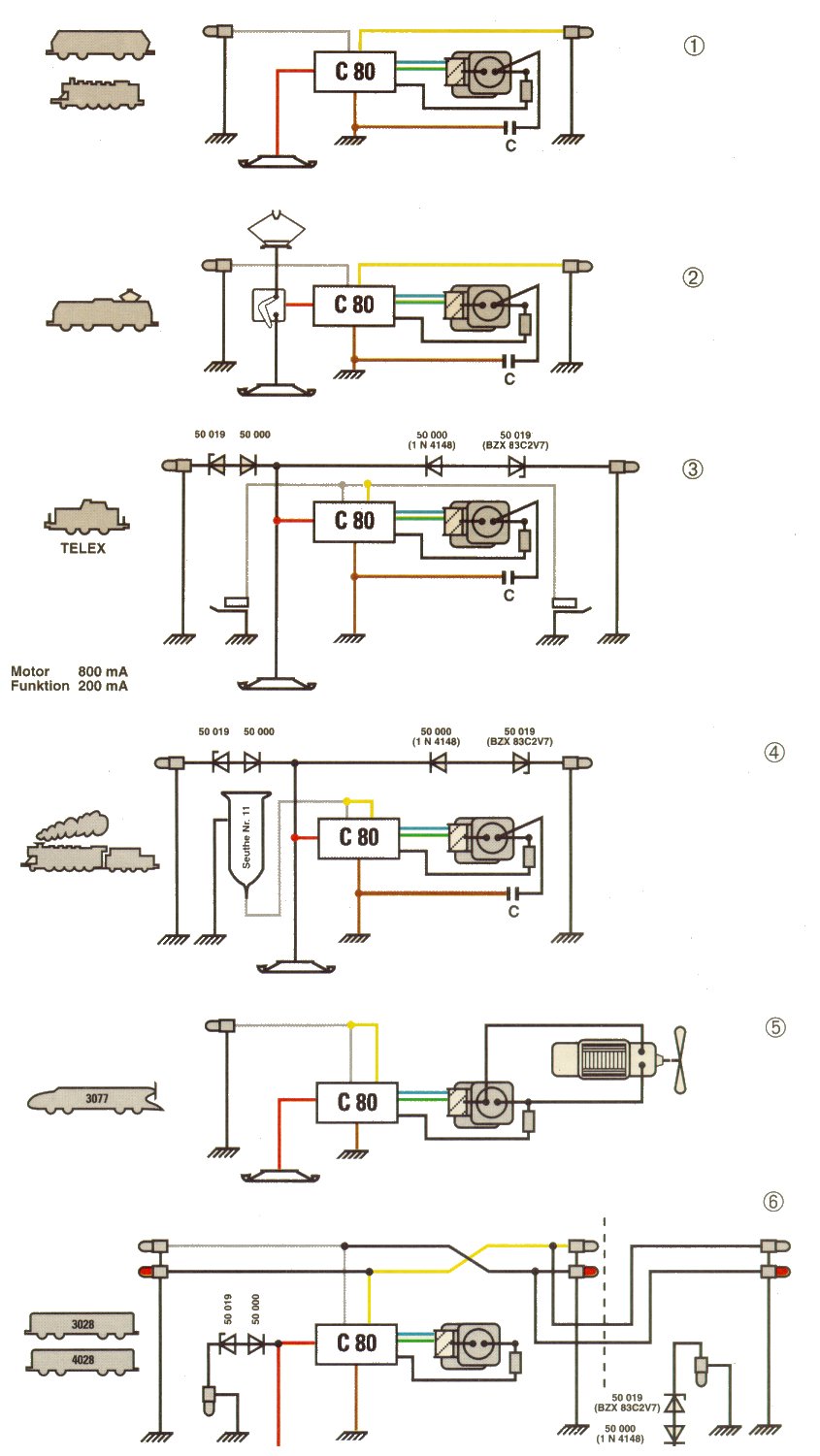

D.1 Installing c80 Digital Decoders
| Part # | Description | Price | |
| 603617 | decoder | $ 59 | |
| 386820 | 5-pole armature | $ 10 | |
| 386940 | brush plate (motor shield) | $ 5 | |
| 389000 | permanent field magnet | $ 10 | |
| 396270 | coding pencil / tool | $ 1 | |
| 516520 | interference / noise suppressors (2) | $ 1 | |
| 601460 | brushes (2) | $ 2 |
| Part # | Description | Price | |
| 603617 | decoder | $ 59 | |
| 210888 | 8-tooth, 5-pole armature | $ 10 | |
| 224613 | brush plate (motor shield) | $ 5 | |
| 224615 | permanent field magnet | $ 5 | |
| 231470 | Solder point for ground connections (10/pk) | $ 4 | |
| 276770 | lamp socket (2) | $ 3 | |
| 396270 | coding pencil / tool | $ 1 | |
| 516520 | interference / noise suppressors (2) | $ 1 | |
| 600760 | condensers | $ 1 | |
| 601460 | brushes (2) | $ 2 | |
| 610040 | light bulbs (2) (2/pk) | $ 3 | |
| 785140 | narrow screws for brush plate (2) (10/pk) | $ 4 |
The 60904 set* consists of:
| Part # | Description | Price | |
| 603617 | decoder | $ 59 | |
| 212230 | Solder point for ground connections (10/pk) | $ 4 | |
| 214118 | 7-tooth, 5-pole armature | $ 10 | |
| 210888 | 8-tooth, 5-pole armature | $ 10 | |
| 210881 | brush plate (motor shield) style # 1 | $ 5 | |
| 214121 | brush plate (motor shield) style # 2 | $ 5 | |
| 210882 | permanent field magnet | $ 5 | |
| 276770 | lamp sockets (2) | $ 3 | |
| 396270 | coding pencil / tool | $ 1 | |
| 516520 | interference / noise suppressors (2) | $ 1 | |
| 600760 | condensers | $ 1 | |
| 601460 | brushes (2) | $ 2 | |
| 610040 | light bulbs (2) (2/pk) | $ 3 | |
| 784810 | thick screws (w/small head) for brush plate (2) (10/pk) | $ 4 | |
| 784820 | narrow screws for brush plate (2) (10/pk) | $ 4 |
* Please note that the 60901, 60903 and 60904 kits are
normally sold as a complete set.
The part numbers and descriptions listed are for your reference and
convenience.
The prices listed are approximate and subject to change.
Individual parts may or may not be readily available separately.
