2013 Marklin, TRIX and LGB New Items

Here are the 2013 New Items from Marklin

Authorized Marklin Digital Dealer .

If you see something you like, email me: RJFtrains@aol.com

If you have an interest in any of the items listed below, let me know ASAP, even if they are scheduled for 3rd or 4th quarter delivery, and especially if the items are MHI , Limited , Export , or even car sets. These almost always sell out in the US and ordering early provides your best chance to get these.

Note: Prices indicated as "Pre-order Price" are valid only for orders placed before February 25, 2013. For orders after that date, the higher price (if shown) will prevail.
.
(E)	Export	Items generally only available for one year -- limited availability
(E1)	Export "special"	Items given priority to specific country - very limited availability Items with delivery dates of "n/a" cannot be ordered at this time
(EX)	MHI / Exclusive	Available only by subscription -- very limited availability
(L)	Limited production	One-year only runs; often sold out early in the year
The "fine print":
Not responsible for typographical errors or changes in price or features by Märklin. Prices and specifications subject to change without notice.
Please click here to read more about pricing.

60122 - MS II Hub (Distribution Board)
Pre-order price: $ 45.00

Model: Distribution board for connections for up to a maximum of 5 MS II to an output on the 60112 or 60113 digital connector box. An MS II Hub can be connected to both outputs on the connector box. Hence, up to a maximum of 10 MS II connected to the 60112 or 60113 connector box can be operated. The power requirements of an MS II is about 50 milliamps. Dimensions 96 x 85 x 40 mm / 3-3/4" x 3-3/8" x 1-9/16". This distribution board cannot be connected to the CS II! You must use item numbers 60125 and 60124 in order to connect several MS II to the CS II.

60821 - Accessory Set for the m 83 Decoder

Pre-order price: $ 19.00

Model: This is a turnout motor front end circuit board for the m 83 decoder. It is for using turnout mechanisms with motors with an end shutoff feature in the end stop position. This can only be used in conjunction with the m 83 (60831). When you are operating such mechanisms with the m 83, you can program the set speed as well as a slow approach to the end position.

60831 - m 83 Decoder

Pre-order price: $ 29.00
m 83 Decoder.

Model: This is a receiver for controlling turnouts, signals, and uncoupler tracks. The m 83 supports the Motorola and DCC digital formats. The digital address can be set using the coding switches or by means of a programming track. The available address range in the Motorola format is up to address 320 and in the DCC format up to address 2040. The m 83 has 8 outputs, and each one can be controlled separately. The default setting is for up to 4 turnouts. Other functions are controlling lighting (dimmable) with a defined power-on behavior (example: street lighting) as well as controlling building lighting (houses, etc.). It is possible to have an outside power supply such as the 66361/66365. The 60831 and 60841 decoders can be arranged in any order desired. A 60821 accessory set per output is required for turnouts with turnout motors. Connections are done with set screw terminals. The maximum current load is 3 amps.

Highlights:

Many new control possibilities.
LED indicators for fast recognition of operating status.
Can be updated.

60841 - m 84 Decoder

Pre-order price: $ 65.00
m 84 Decoder.

Model: This is a receiver for turning continuous current on and off for lighting, motors, Hobby signals (74371, 74380, 74391) and other electric accessories. The m 84 supports the Motorola and DCC digital formats. The digital address can be set using the coding switches or by means of a programming track. The available address range in the Motorola format is up to address 320 and in the DCC format up to address 2040. The m 84 has 4 relays for galvanic separated control of users. If you use the 66361/66365 switched mode power packs to power circuits connected to these relays, you can achieve bi-stable status for the relays and store in memory the last control activity. The Hobby color light signals can be controlled with the same control potential for the track current. In addition, the m 84 has 8 inputs for manual control of the relays (analogous to the 7244 remote relay). The 60831 and 60841 decoders can be arranged in any order desired. Connections are done with set screw terminals. The maximum current load is 5 amps.

Highlights:

Many new control possibilities.
LED indicators for fast recognition of operating status.
Can be updated.

60881 - s 88 Decoder

Pre-order price: $ 49.00
s 88 Decoder.

Model: This is a feedback module for contact generators on digitally controlled layouts. This module can be plugged into the L88 (60883) with the cable included with the former. The s 88 has a connecting socket for additional s 88 decoders (60881). 16 inputs for contact generators.

Highlights:

Set screw terminals for all connections.
Network cable included.

60882 - s 88 DC Decoder

Pre-order price: $ 65.00
s 88 DC Decoder.

Model: This is a feedback module for current sensors on digitally controlled 2-rail layouts. This module can be plugged into the L88 (60883) with the cable included with the former. The s 88 DC has a connecting socket for additional s 88 DC decoders (60882). It also has 2x 8 inputs for current sensors (with optical-couplers) in 2 different power circuits that can be combined into a single power circuit with 16 inputs.

Highlights:

Set screw terminals for all connections.
Network cable included.

60883 - L88 (Link s 88)

Pre-order price: $ 69.00
L88 (Link s 88).

Model: This allows connections for the s 88 (60881) and s 88 DC (60882) and the older s 88 feedback modules (6088 und 60880) to the Central Station II, and to the 60125 Terminal. The unit has an older design socket for the 6088 and 60880 feedback modules, as well as two RJ 45 sockets for the new 60881 and 60882 feedback modules. In addition, there are 16 inputs for contact generators analogous to the 60881. These 16 inputs can be configured specially for track diagram control boards so that a matrix with up to 64 buttons can be set up.

Highlights:

Set screw terminals for all connections.

70361 - Advance signal

Pre-order price: $ TBA
Advance signal.

Model: 2-Aspect (green/green, amber/amber) single-solenoid advance signal for use with signals 70391 and 70392.

70381 - Advance signal

Pre-order price: $ TBA
Advance signal.

Model: 3-Aspect (green/green, amber/amber, amber/green) double-solenoid advance signal for use with signal 70411.

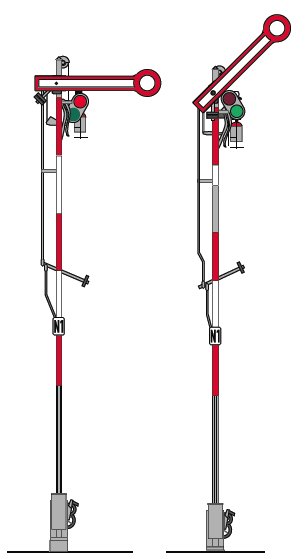

70391 - Digital Single-arm Semaphore Home Signal

Pre-order price: $ TBA

Model: 2-Aspect , single-solenoid color home signal with thin (open) style mast.

Highlights:

With mfx decoder for automatic recognition

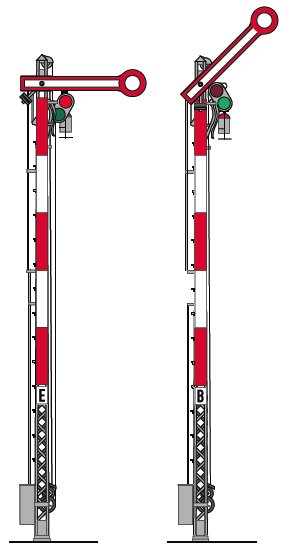

70392 - Digital Single-arm Semaphore Home Signal

Pre-order price: $ TBA

Model: 2-Aspect, single solenoid color home signal with standard (thick) style mast.

Highlights:

With mfx decoder for automatic recognition

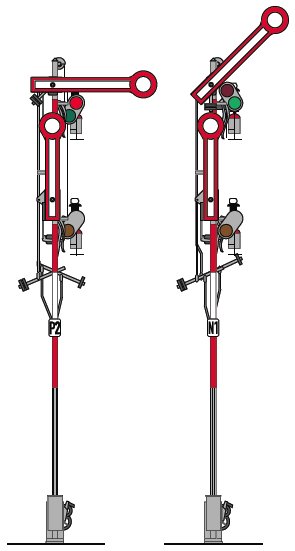

70411 - Digital Double-arm Semaphore Home Signal

Pre-order price: $ TBA

Model: 3-Aspect, double-solenoid color home signal with thin (open) style mast.

Highlights:

With mfx decoder for automatic recognition

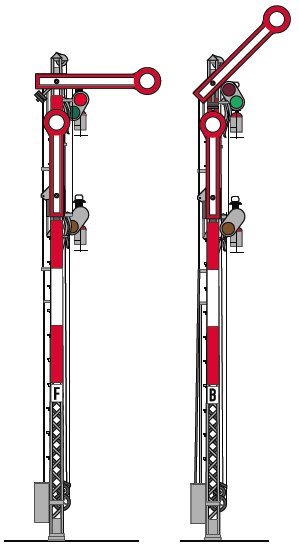

70412 - Digital Double-arm Semaphore Home Signal

Pre-order price: $ TBA

Model: 3-Aspect, double-solenoid color home signal with standard (thick) style mast.

Highlights:

With mfx decoder for automatic recognition

70421 - Digital Yard / Block Signal

Pre-order price: $ TBA

Model: Yard / block signal with indicators on both sides (front / back).

Highlights:

With mfx decoder for automatic recognition

72203 - Manual Grade Crossing
Pre-order price: $ 9.00
Manual Grade Crossing.

Model: This grade crossing consists of 2 street ramps to lay up to the track as well as 2 cross-buck signs that can be set up separately. The crossing gates are mounted on the street ramps and can be opened and closed manually. The grade crossing is made of sturdy plastic. This grade crossing is ideally suited for children ages 3 and above.

72205 - "Loading Station" Building Kit
Pre-order price: $ 29.00
Goes with: 36270 44270 44271 44272 44273 44274 44275
Loading Station Building Kit.

Model: Loading station with 3 different ways to load freight, as a building kit designed for children. This building kit consists of a few parts that can be snapped together. The large tipping hopper can be tipped to both sides. The crane can be moved and has a hook to lift different kinds of freight. The building kit also has a conveyor belt. All 3 modules can be set up individually or as the complete loading station. The building kit comes as individual parts. The parts for the loading station can also be used with the kit cars.

Highlights:

Maximum play fun with snap-together building kits designed for children.
3 different ways to load freight that can also be set up individually.

This loading station is the ideal add-on for the 29270 "Freight Train Kit" starter set. And the other kit items available under item numbers 36270, 44270, 44271, 44272, 44273, 44274, and 44275

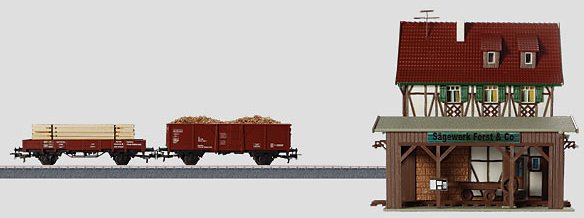

78310 - "Forestry" Theme Extension Set

Pre-order price: $ TBA
Goes with: 29310 44310
Forestry Theme Extension Set.

Prototype: Type Kklm 505 low side car and a gondola paint and lettered of the fictitious Triberg Waldbahn GmbH (TWB).

Model: The low side car is loaded with dressed lumber. The gondola has a load insert of "wood shavings". All of the cars have Relex couplers. Length of the freight car set 23.0 cm / 9-1/16". Contents: 5 no. 24188 straight track, 4 no. 24172 straight track, 1 no. 24224 curved track, 1 no. 24612 right turnout, and 1 no. 24977 track bumper. Plastic kit of a "sawmill".

Highlights:

Sturdy models ? ideally suited for children ages 6 and above.
Track to expand a C Track layout.
All kinds of play fun with the theme of forestry.

This extension set goes well with the 29310 "Forestry" starter set and can even by expanded by the 44310 "Forestry" car set.
